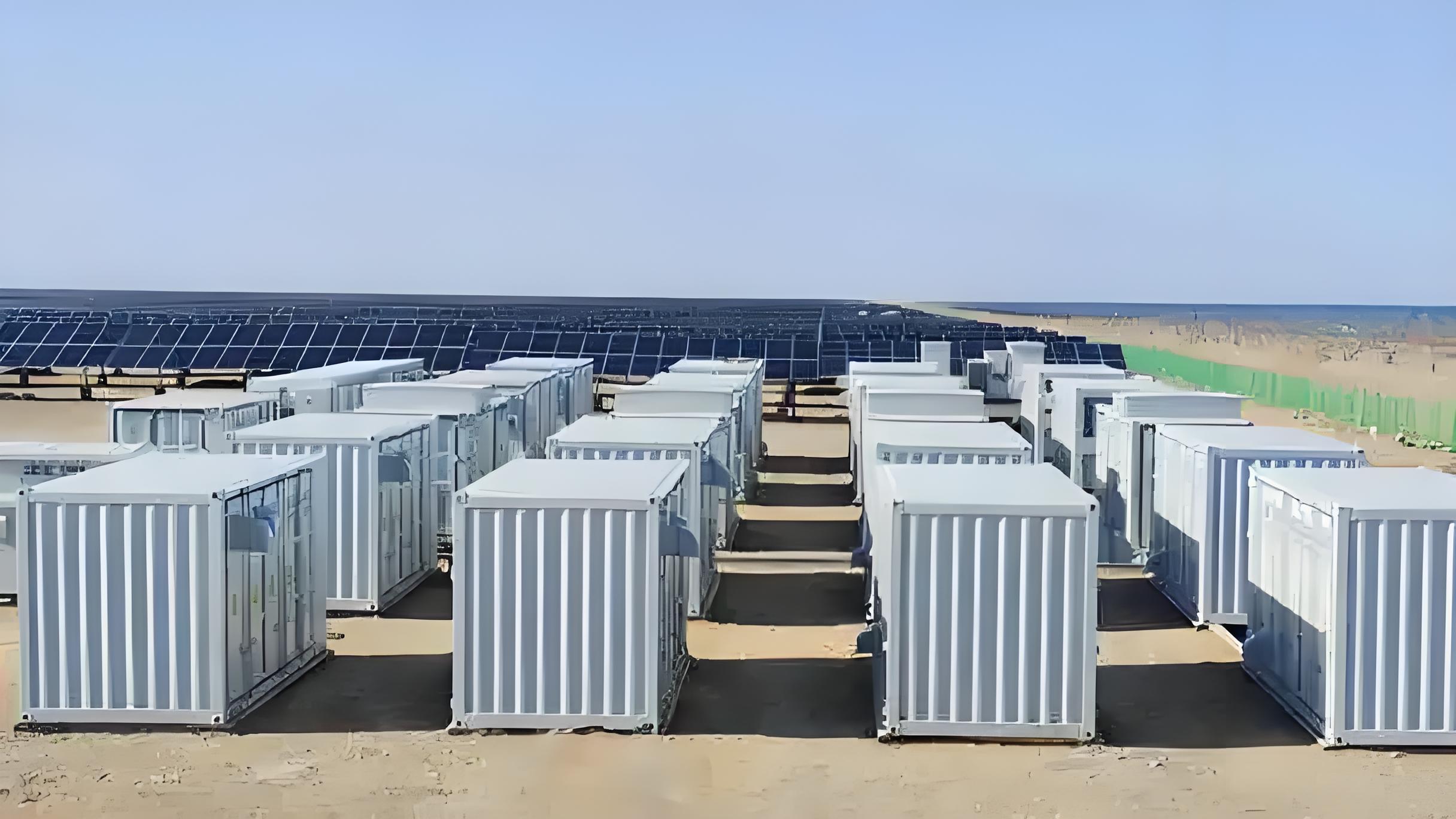

solar energy storage system is widely used in house communities, irrigation, villages, farms, hospitals, factories, airports, schools, hotels (holiday homes), farms, remote suburbs, etc.

Energy Storage System

Energy Storage System

Energy Storage System

What's the area requirement for a energy storage system?

provides container customization

3MWh Energy Storage System Size:

40 * 8.0 * 8.5 ft.

12192*2438*2591 mm

Installation area is about 30m2 = 322.917 ft2

Energy storage system container size

1MWh Energy Storage System Size:

19.8 * 8.0 * 8.5 ft.

6058*2438*2591 mm

Installation area is about 15 m2 = 161.458 ft2

1mwh, 1.5mwh, 2mwh, and 2.5mwh are both designed 20ft containers, so their installation area is the same.



Energy Storage SystemEnergy Storage System

Energy Storage System

Application Scenarios:

Suitable for high-speed cyclic charging and discharging.

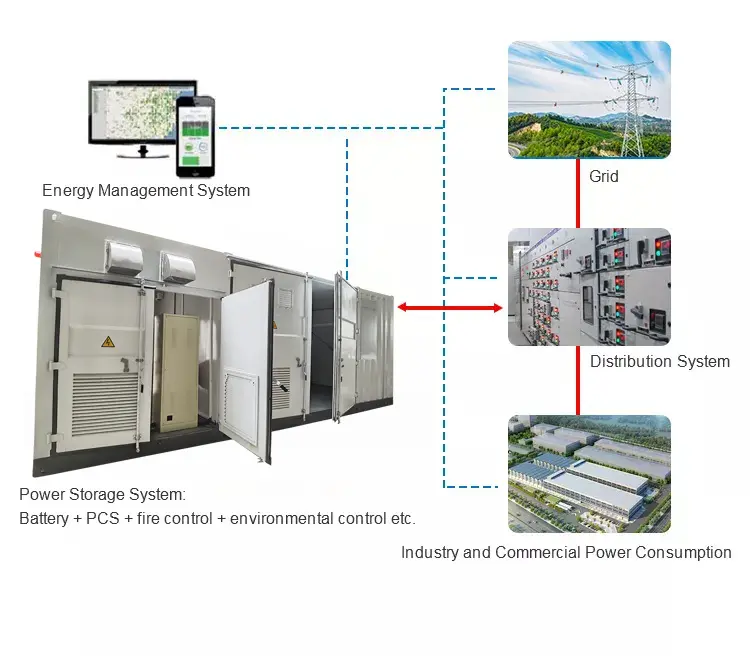

Integrated All-in-One Technology:

Includes controllers, inverters, BMS (Battery Management System), and EMS (Energy Management System).

Features:

Power supply redundancy design, black start capability, and off-grid operation mode.

Battery Type:

Lithium iron phosphate (LFP) battery with aerosol fire suppression solution.

Safety Features:

Flammable gas detection, smoke and temperature sensors, active exhaust, and fire alarm system.

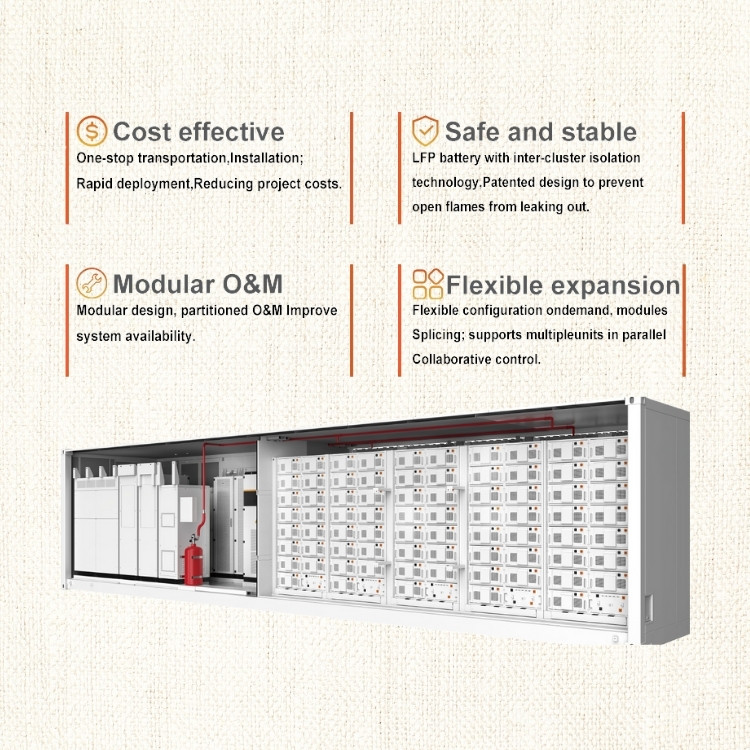

Expandable Capacity:

Battery capacity scalable

Thermal Management:

Battery temperature remains below 35℃ during nominal power operation.

Energy Storage System

Integrated Technology and Redundant Design

It features advanced all-in-one technology, seamlessly combining controllers, inverters, a Battery Management System (BMS), and an Energy Management System (EMS) into a single, efficient unit. Its power supply redundancy design ensures uninterrupted operation, while the black start functionality and off-grid capabilities provide enhanced flexibility and reliability.

Lithium Iron Phosphate (LFP) Battery and Safety Features

Equipped with a premium lithium iron phosphate (LFP) battery, it prioritizes safety and performance. The battery system incorporates an aerosol fire suppression solution, ensuring optimal protection. Additionally, the system includes flammable gas detection, smoke and temperature sensors, active exhaust features, and a fire alarm system, delivering comprehensive safety measures.

Expandable Capacity and Optimal Performance

The High Voltage All-in-One Hybrid ESS supports battery expansion to meet your growing energy needs. During nominal power operation, the maximum battery temperature remains below 35℃, ensuring optimal performance and longevity.

Experience the future of energy storage with High Voltage All-in-One Hybrid ESS and unlock unparalleled performance, safety, and reliability for your energy management requirements.

Energy Storage System

Each ESS solution is pre-engineered, manufactured, and ready to install.

Each ESS includes:

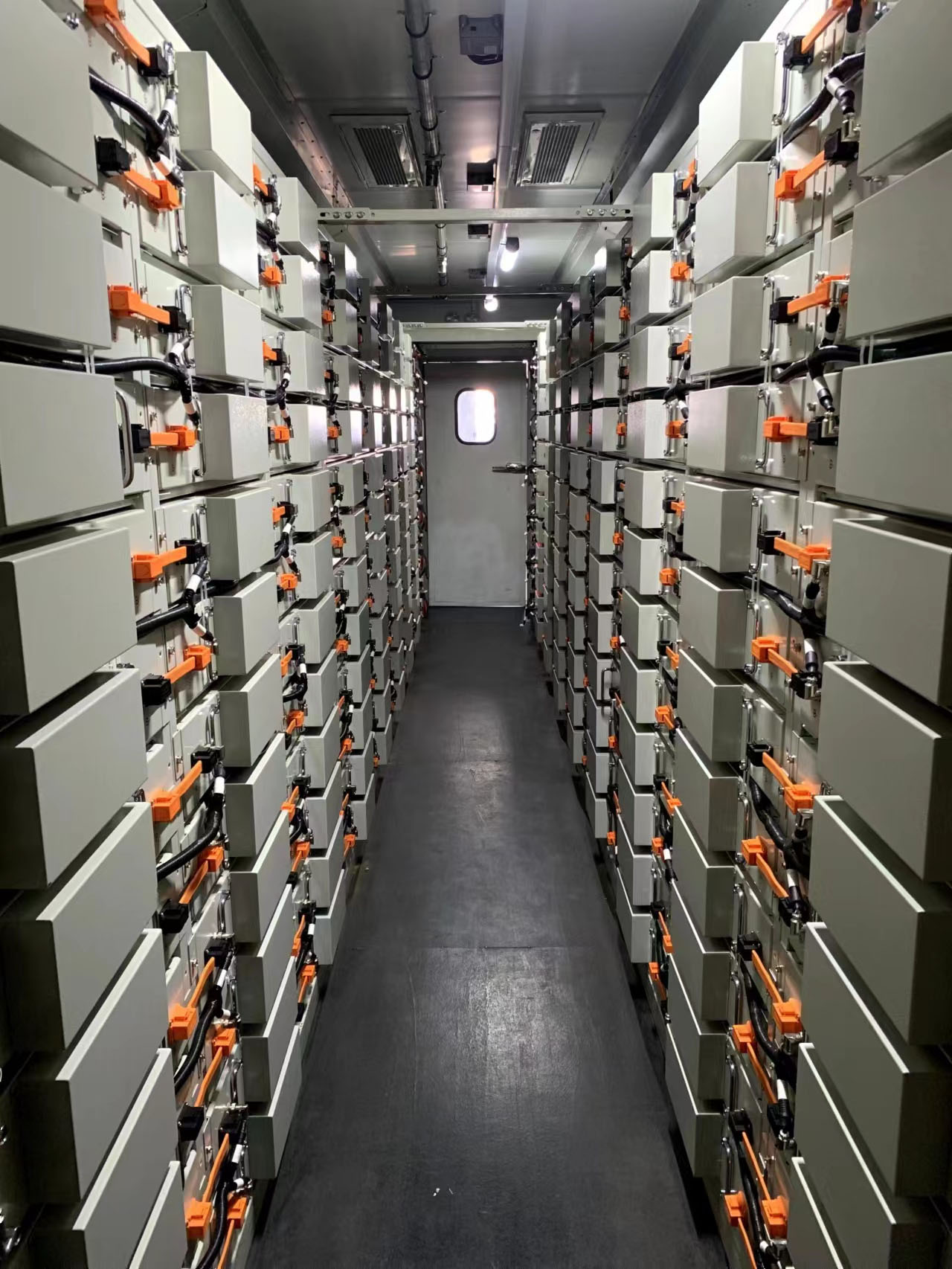

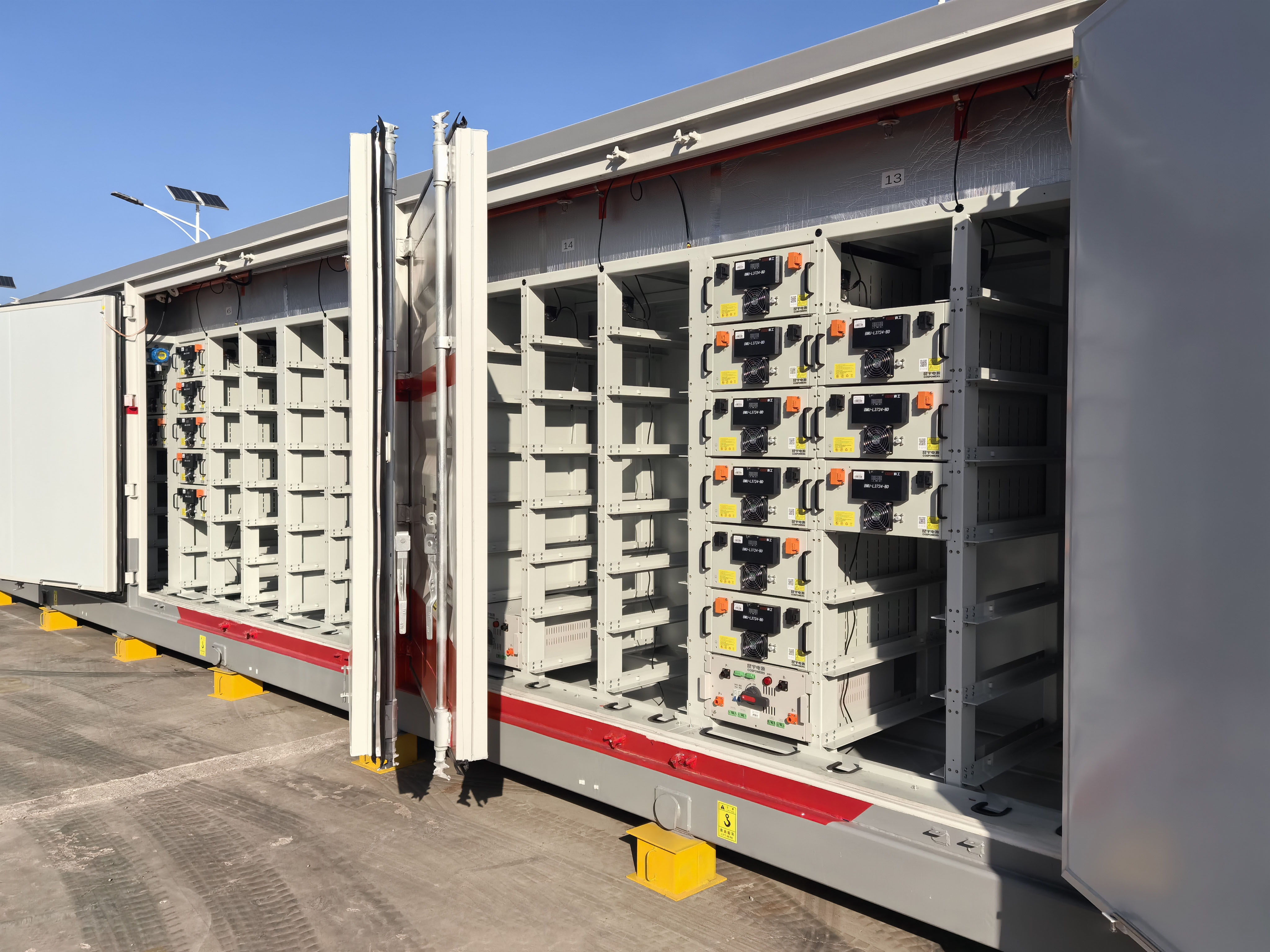

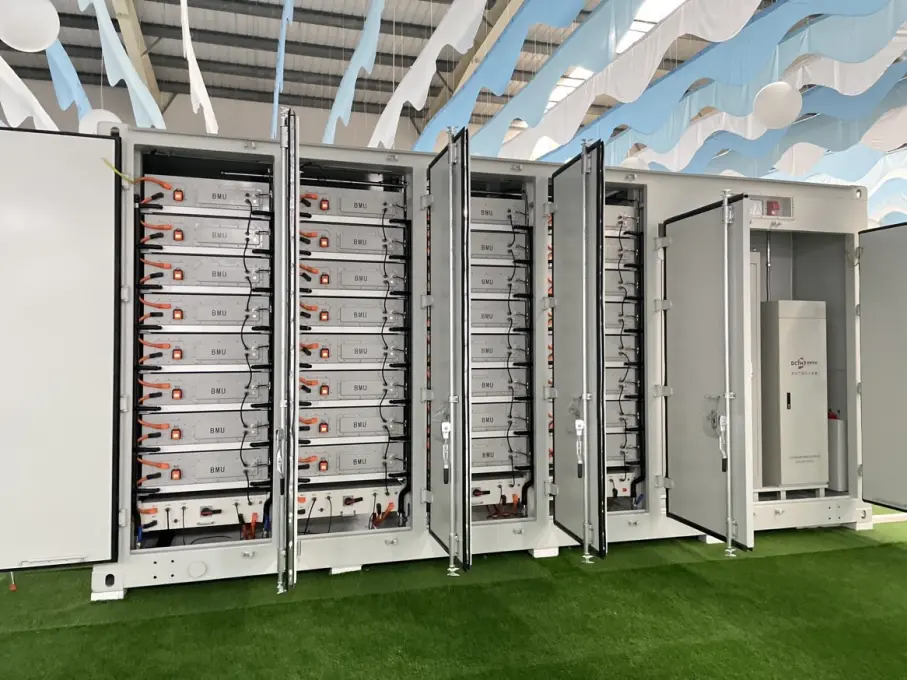

Battery rack and wiring (LFP).

BMS and local controller, PLC system

Power Conversion System (PCS) (DC/AC)

Transformer (optional)

20GP-40GP container

HVAC system

Fire extinguishing system (FFS NOVEC 1230)
