Solar System Manufacturer Solar AC 1 Horsepower
Solar Air Conditioner System
Solar Air Conditioner System
Solar Air Conditioner System

Solar System Manufacturer Solar AC 1 Horsepower

Solar AC 1 Horsepower use 100% solar to make your room cooling.

Product Specification:
  • MS-26GW/DC-1HP / 0.75 ton Voltage: 48VDC Working time
Inquiry Now
  1. Product Details
  2. Download

Solar System Manufacturer Solar AC 1 Horsepower Solar System Manufacturer Solar AC 1 Horsepower

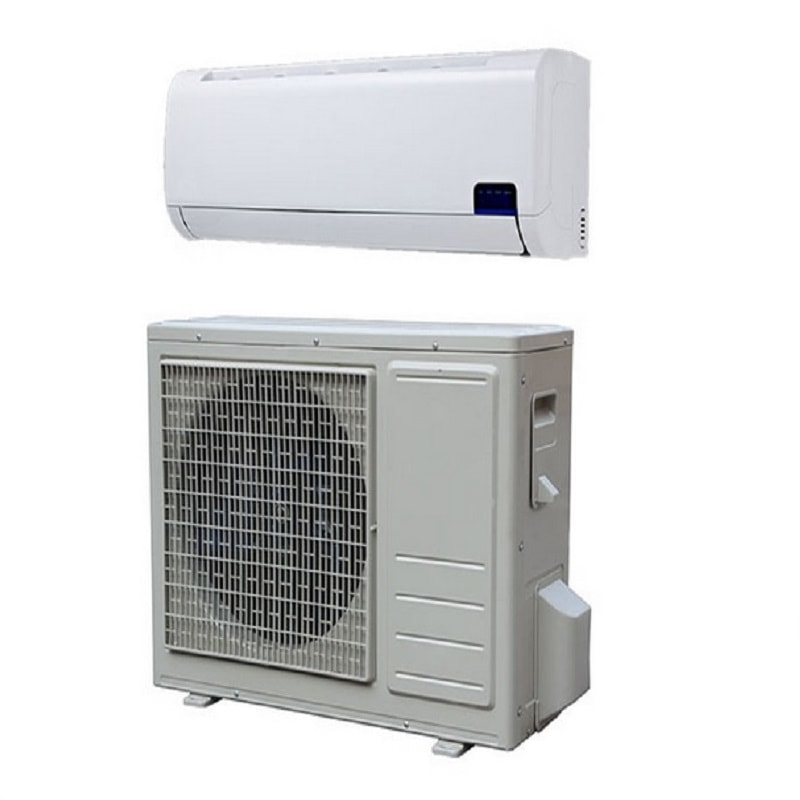

Solar AC 1 Horsepower

Power input:570W      Rated current:11.5A     Input voltage:48VDC

Working time:12-14hours

Solar System Manufacturer Solar AC 1 Horsepower

Model:MS-26GW/DC-1HP / 0.75 ton   Voltage:48VDC

Cooling capacity:9000BTU/H / 2600W

Heating capacity:10000BTU/H / 2800W

Noise:≤40dB(indoor) / ≤50dB(outdoor)

Air circulation:450m³/h    Work Temp:-15~60℃

Suitable Area:10~25㎡  Refrigerant:R-410A

Energy efficiency ratio:4.56W/W / 15.79BTU/H/W

Indoor unit:780*240*305mm,13KG

Outdoor unit:725*320*540mm,40KG.

5Years Warranty For Compressor

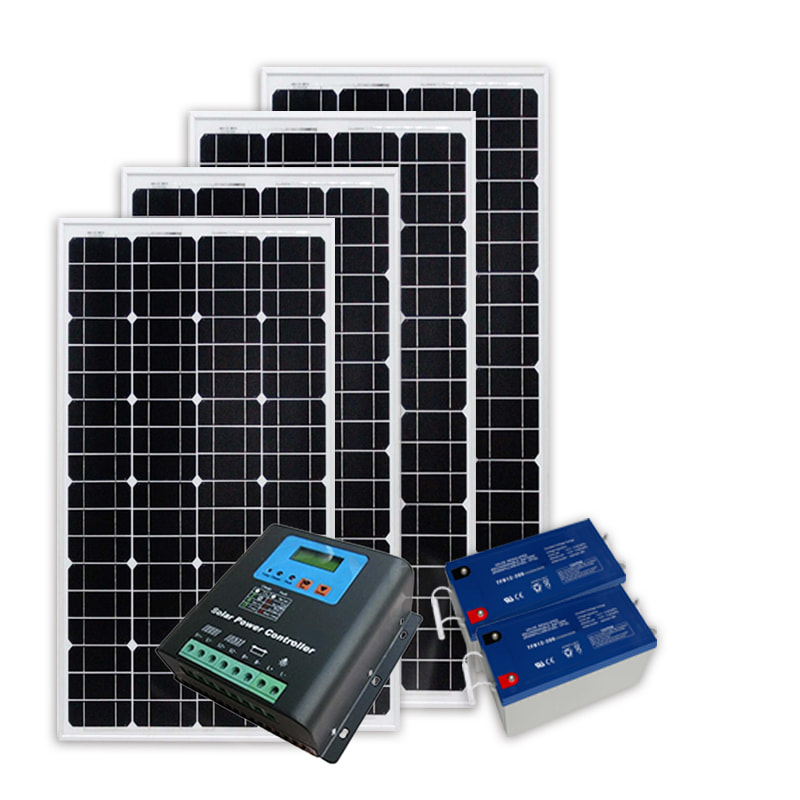

Solar panel:2pcs350W mono solar panel

Amp:36V  Imp:9.72A  Voc:44V Cell Efficiency(%):21%

Solar controller:20A48V

Equalization voltage(10minutes):59.2V

Boost voltage(10minutes):57.6V

Float voltage:54.4V   Load disconnect:44.4V Load reconnect:50.4V

Batteries:4pcs 12V65AH gel battery

Capacity:[email protected] rate F.V.(1.75V/cell)

Terminals:B3(Fitting M6 bolt & nut) 12 is optional

Internal Resistance:≤4.5mΩ(Fully Charged)

Max. Charge Current:15A

         Solar System Manufacturer Solar AC 1 Horsepower
Solar System Manufacturer Solar AC 1 Horsepower

Slope Rooftop or Flat ground

design base on your installation place

Including complete fittings

wind load:55m/s,snow load:1.5kn/m2

Aluminum alloy, anti-oxidation treatment

1)1set battery cable and terminal

2)4mm2 PV cable 50M

3)1set PV terminals and MC4

Solar System Manufacturer Solar AC 1 Horsepower

Solar System Manufacturer Solar AC 1 Horsepower Solar System Manufacturer Solar AC 1 Horsepower Solar System Manufacturer Solar AC 1 Horsepower            Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for home solar system,solar air conditioner system products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.

Solar System Manufacturer Solar AC 1 HorsepowerSolar System Manufacturer Solar AC 1 Horsepower Solar System Manufacturer Solar AC 1 HorsepowerSolar Air Conditioner Solar System Manufacturer Solar AC 1 Horsepower Solar Air Conditioner SystemSolar System Manufacturer Solar AC 1 Horsepower

Q:Which solar air conditioner system is suitable for me?
A:Mars solar air conditioner systems can be used in homes, offices, villas, hospitals, churches, etc.Ma0rs manufacture solar air conditioner system from 9000BTU to 36000BTU, you can choose according to your house space.if you do not know which model solar air conditioner system is suitable for you, you can consult us.Our 10years experience sale manager will help you configure the system in 12hrs.

Q:Why choose to use the MARS solar air conditioner system?
A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar air conditioner system can help you make full use of solar energy and make your room cooling.We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods.

Q:What is the warranty of products?
A:Suggest buy complete solar air conditioner system from our factory, solar panel have 10 years warranty ,compressor have 3years,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

Q:Can we get support if we have our own market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you.
