Low Cost High Efficiency 90HP/45KW Solar Pumping System
90HP/45KW solar pumping system supply power 45KW three phase water pump in the day time.- Working time: sunshine time
- Product Details
- Download
Low Cost High Efficiency 90HP/45KW Solar Pumping System
solar water pump system- SWP-45KW/90HP
System basic information:solar panel rated output power:68160W Water pump capacity :45KW(three phase)
|
192pcs FS355W mono solar panel Vmp:34.4V Voc:43.2V Imp 10.3A Short-circuit current(Isc):10.8A Size:1956*992*40mm Glass:3.2mm Tem pered Terminal block：IP65 with MC4 connector ;Operating temperature03 -40℃ to 85℃ Connect way :each 16pcs in series ;12 strings connect to PV combiner |
|
 |

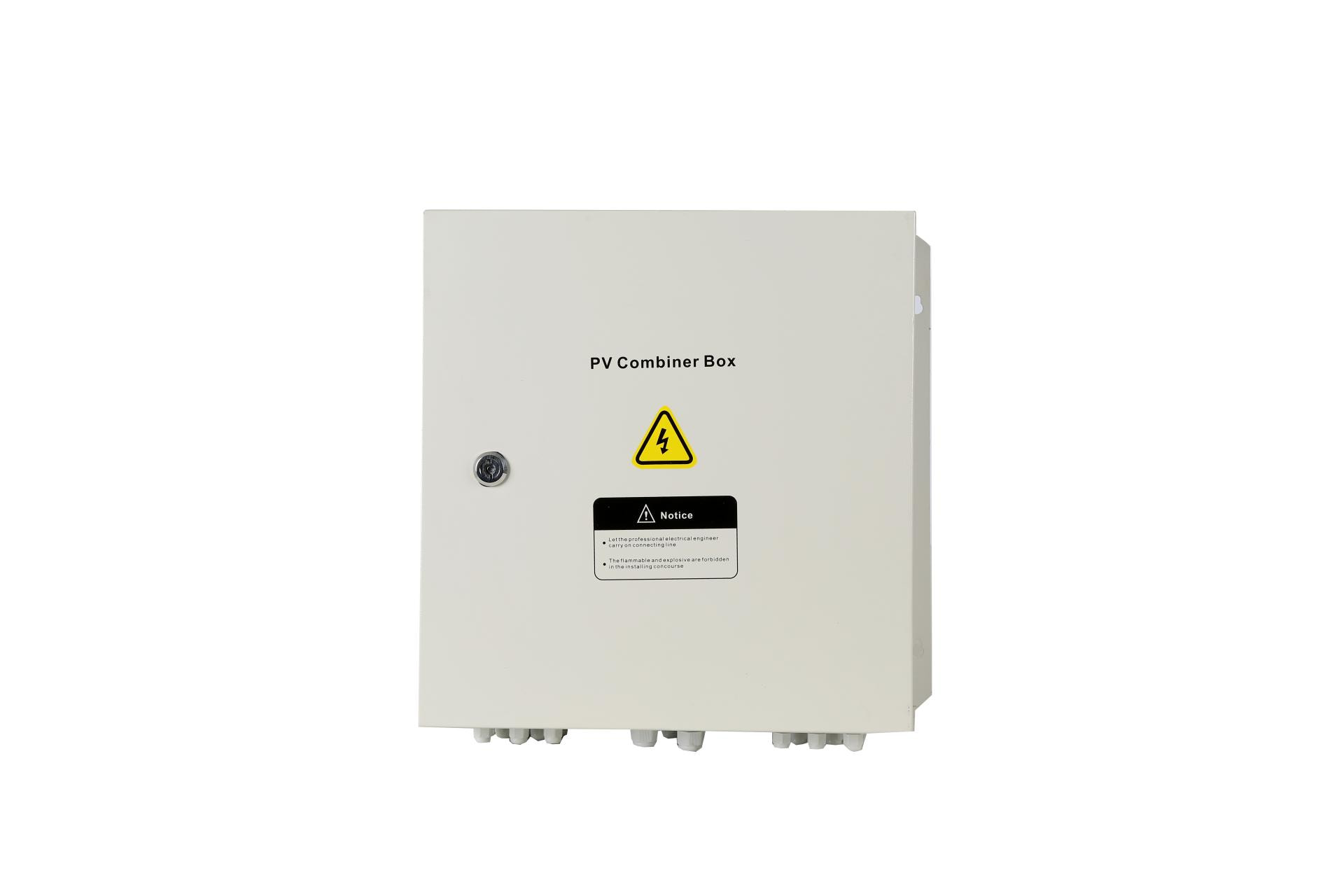

PV Array Combiner Model:H6T Multiple PV strings inputs. Simplify wiring between PV array and pump inverter. Wide range of DC input voltage Reliable thunderstorm& surge protection |
|

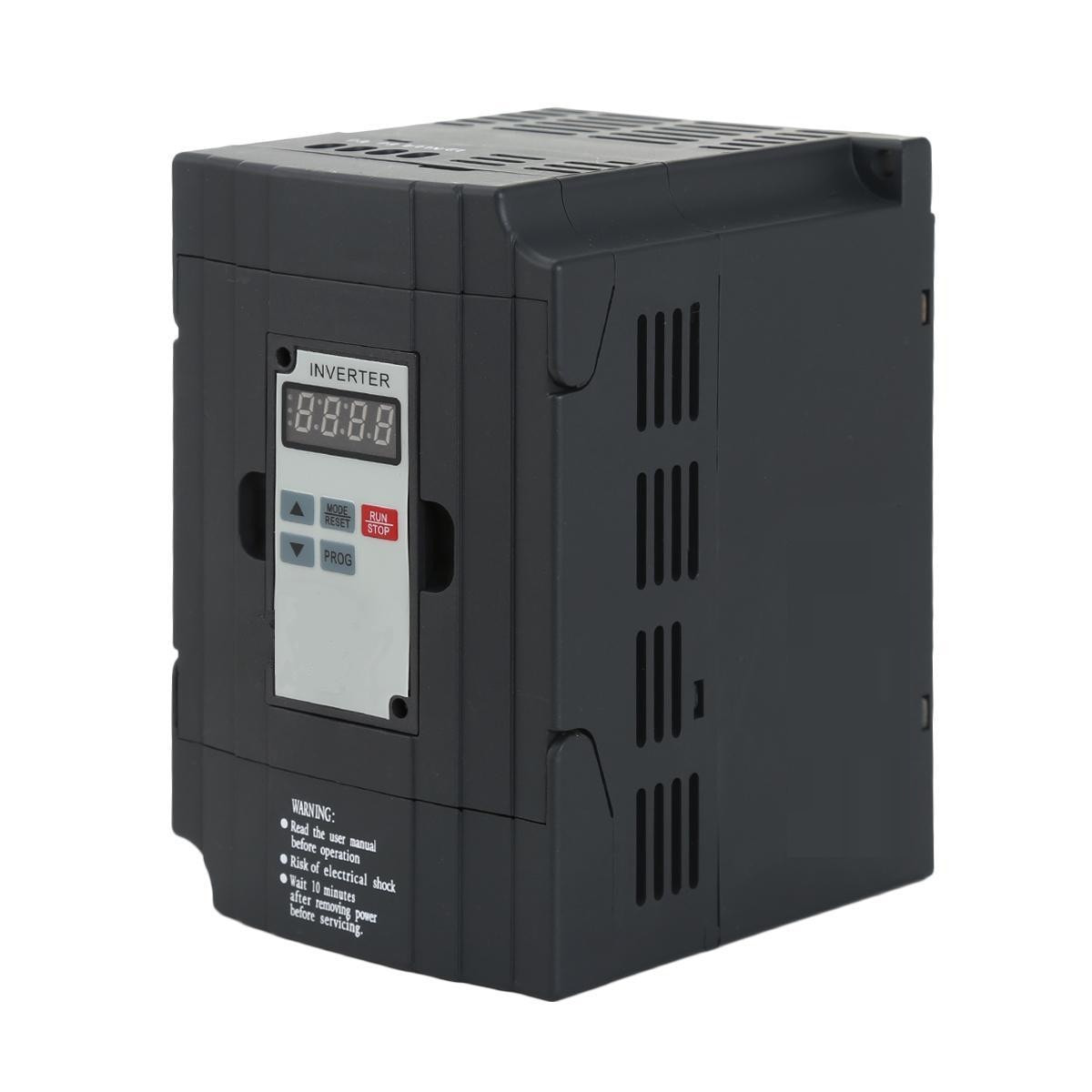

Three phase Pump inverter Model:PTF55KW(500V-600V) 3phase Output current:150A Suggest input voltage :550V Frequency:0~50HZ Protection:Lightning protection, over current, over voltage, the output phase, underload, undervoltage, short circuit, overheat, pump turn when no water, etc |
 |
 |
Solar panel bracket wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable |
|
1)4mm2 PV cable 100M 2)MC4 3)32mm2 cable conductor 100M |
 |
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for home solar system products,solar pumping system products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
| Q:Which solar pumping system is suitable for me? |
|
A:Mars solar pumping systems supply power singel phase and three phase water pump.We design solar pumping system based on your water pump power. |
| Q:Why choose to use the MARS solar pumping system? |
| A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar pumping system can make the irrigation by free energy.it is suitable to use this solar pumping system for remote area. We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer. |
| Q:How long is the lead time of orders? |
| A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods. |
| Q:What is the warranty of products? |
| A:Suggest buy complete solar pumping system from our factory, solar panel have 10 years warranty ,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality. |
| Q:Can I install it myself? |
| A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation. |
| Q:How to calculate the freight? |
| A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us. |
| Q:Can we get support if we have our own market position? |
| A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you. |
