Wind And Solar Hybrid System
3KW Combined Solar And Wind Energy System3KW combined solar and wind energy system help you save 90% electricity bill.
- Output voltage: 110V/220V/230V/240VAC
- Product Details
3KW Combined Solar And Wind Energy System
|3KW Combined Solar And Wind Energy System|
4pcs 250W monocrystalline solar panel
A grade SUNTECH cells of high efficiency 21%
Vmp:34.2V Voc:43.2V Imp:7.27A
Size : 1640*983*35mm
25 years life time, CE ROHS approval
Solar panel bracket: Slope roof or Flat roof or Ground optional
Wind generator power:2000W
Max power:3000W Working voltage:48V
Working wind speed:3m/s-20m/s
Survived wind speed:45m/s
3years warranty,20year use life.
Guy cable pole:6meters(optional)

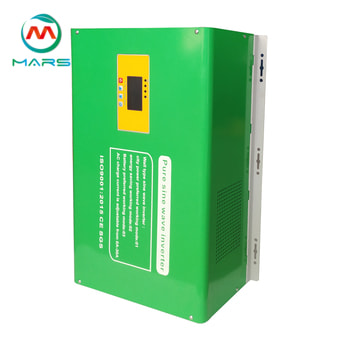

Input 1000W solar power+2000W wind power DC 48V input; Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection.
Rate output Power:3000W pure sine wave
DC48V ; Output:110V,120V,220V,230V,240V
With AC charger build-in,Protection against overload,
short circuit, anti-reverse, discharger, etc.
Optional charge by generator
Deep cycle maintenance-free gel battery, Service life:6-8 years
1)11pcs 16mm2*1M battery connect cable
2)4mm2 PV cable 50M，50M 6mm2 wind cable
3)terminals and MC4
3KW Combined Solar And Wind Energy System Load Reference
|Load name||Load’s watt||Qty||Total watt|
|Satellite TV receiver/VCD||25W||1||25W|
Remark:water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first. Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar power system products,solar street light products,inverter products,combined solar and wind energy system products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
Q:Why choose to use the MARS solar winds hybrid system?
A:Solar solar winds hybrid system is now the most environmentally friendly energy source in the world. Using the MARS solar winds power system can reduce your electricity bill by 90%.We have 10+years experience in solar winds power system products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer
