10KW Hybrid Wind Solar Energy System
10KW Hybrid Wind Solar Energy System help you save 90% electricity bill.- Output voltage: 110V/220V/230V/240VAC
May you like
- Product Details
- Download
10KW Hybrid Wind Solar Energy System
| 10KW Hybrid Wind Solar Energy System | |
|
|
15pcs 340W monocrystalline solar panel A grade SUNTECH cells of high efficiency 21% Vmp:34.2V Voc:43.2V Imp:9.27A Size : 1956*992*40mm Operating temperature:-20℃~+80℃ 25 years life time, CE ROHS approval Solar panel bracket: Slope roof or Flat roof or Ground optional |
|

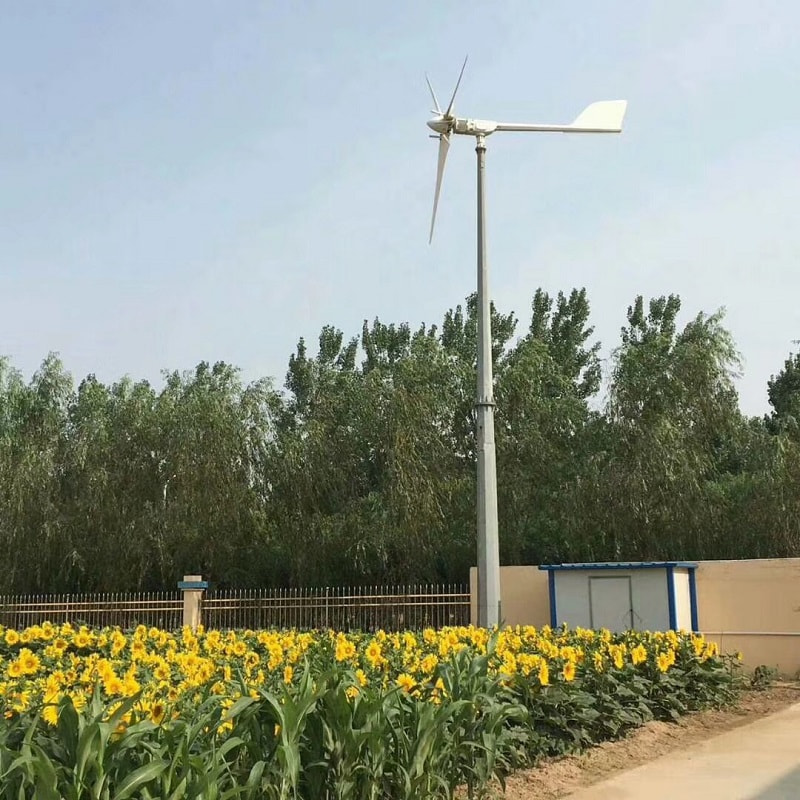

Wind generator power:5000W Max power:10000W Working voltage:120V Working wind speed:3m/s-20m/s Survived wind speed:45m/s 3years warranty,20year use life. Guy cable pole:9meters(optional) |
 |
 |
Input 5100W solar power+5000W wind power DC 120V input; Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection. |
|
Rate output Power:10000W pure sine wave DC120V ; Output:110V,120V,220V,230V,240V With AC charger build-in,Protection against overload, short circuit, anti-reverse, discharger, etc. Optional charge by generator |
 |
 |
20pcs Capacity:12V/150AH Deep cycle maintenance-free gel battery, Service life:6-8 years Size:483*170*219mm |
|
1)24pcs 16mm2*1M battery connect cable 2)4mm2 PV cable 100M，50M 10mm2 wind cable 3)terminals and MC4 |
 |
|
10KW Hybrid Wind Solar Energy System Load Reference |
|||
| Load name | Load’s watt | Qty | Total watt |
| Lights | 11W | 20 | 220W |
| Fan | 80W | 4 | 320W |
| Computer | 150W | 2 | 300W |
| Printer | 250W | 1 | 250W |
| Fax machine | 150W | 1 | 150W |
| Washing machine | 300W | 1 | 300W |
| Microwave | 1500W | 1 | 1500W |
| Electric cooker | 300W | 1 | 300W |
| Satellite TV receiver/VCD | 25W | 1 | 25W |
| Color TV(32inch) | 100W | 2 | 200W |
| Water pump | 200W | 1 | 200W |
| Refrigerator | 120W | 2 | 240W |
| Air conditioner(1.5HP) | 1125W | 4 | 4500W |
| Total | 8505W | ||
Remark:water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first.
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar power system products,solar street light products,inverter products,wind and solar power system products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
Q:Which wind and solar power systems is suitable for me?
Q:Why choose to use the MARS wind and solar power systems?
A:Wind and solar power systems is now the most environmentally friendly energy source in the world. Using the MARS wind and solar power systems can reduce your electricity bill by 90%.We have 10+years experience in wind and solar power systems products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer
