Off Grid Inverter
Solar Inverter Factory Solar 3KW Inverter
Solar 3KW Inverter have 48V 60A Solar Charger Build In,Can Supply Power To TV,Light,Computer,Fridge etc.- Output: 110V/120V/220V/230V/240VAC
- Product Details
- Download

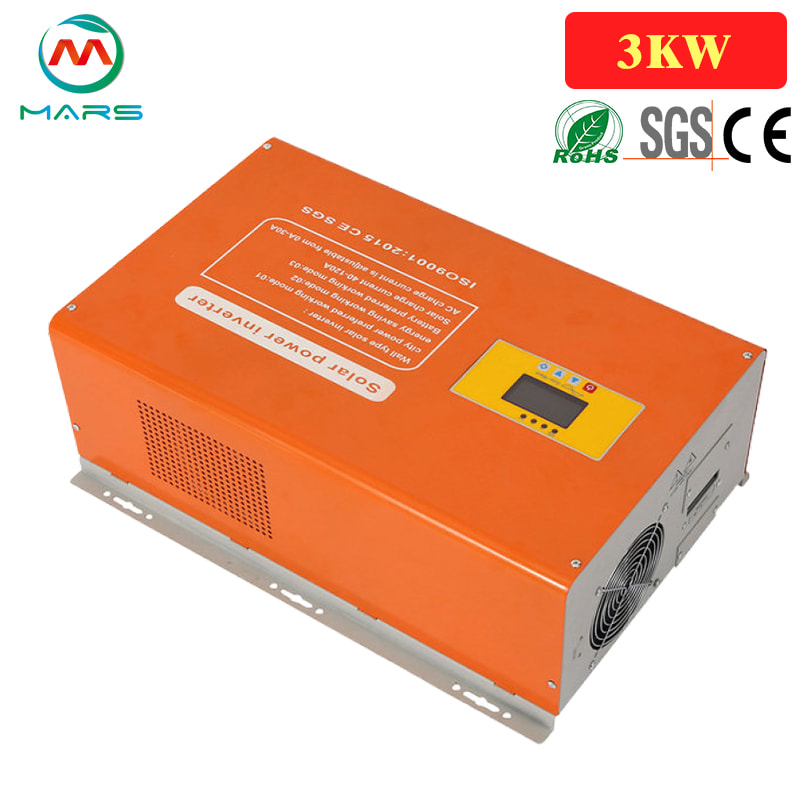

Solar Inverter Factory Solar 3KW Inverter
|
|
 |
|
Solar 3KW inverter product feature: 1.Combine with solar power controller and inverter hybrid function. 2.Completely controlled by CPU. 3.Inverter use high efficiency transformer, pure sine wave output. 4..LCD displays, clearly to know the status. 5.have bypass function and AC charger (UPS function) 6.Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc. 7.Easy operation, only need connect the panels and batteries directly to the Hybrid solar inverter. 8.Use USA brand MOSFET and ,quality is our culture. |
|
Model |
MA1K |
MA2K |
MA3K |
MA4K |
MA5K |
MA6K |
||||||
|
Rated Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
||||||
|
Battery voltage |
24VDC/48VDC |
48VDC |
||||||||||
|
Low Frequency Inverter
|
AC input voltage range |
85-138VAC/170-275VAC/185-300VAC |
||||||||||
|
AC input frequency |
45-65Hz |
|||||||||||
|
Battery voltage range |
110VAC/120VAC/220VAC/240VAC±5% |
|||||||||||
|
Output voltage range |
50/60Hz±1% |
|||||||||||
|
AC output voltage range |
Constant voltage output 110VAC ±10% / 220VAC ±10% /240VAC±10% |
|||||||||||
|
Output frequency |
50Hz/60Hz±1% |
|||||||||||
|
output frequency range |
50Hz 60Hz Automatic tracking |
|||||||||||
|
Output waveform |
Pure sine wave |
|||||||||||
|
Efficiency |
≥85% |
|||||||||||
|
Switching time |
≤10ms |
|||||||||||
|
Battery under-voltage alarm/protection |
24V(21V/20V) |
48V(42V/40V) |
||||||||||
|
Battery over-voltage alarm/protection |
24V(30V/33.5V) |
48V(60V/67V) |
||||||||||
|
Power overload protection |
Rated power≥110-120% 30SShutdown；≥150% 0.6sShutdown |
|||||||||||
|
Temperature protection |
≥85℃Alarm，≥90℃Turn off machine |
|||||||||||
|
Work patterns are free to choose |
01.Mains priority mode；02Energy saving mode；03.Accumulator priority mode |
|||||||||||
|
Solar Controller |
Solar input voltagerating |
36VDC |
72VDC |
|||||||||
|
Max input voltage |
42VDC |
84VDC |
||||||||||
|
Charging voltage |
28VDC |
56VDC |
||||||||||
|
Controller protection function |
Solar-powered anti-overcharge protection, battery circuit protection, battery over voltage protection |
|||||||||||
|
Batteryovervoltage/undervoltage protection |
30VDC/20VDC |
60VDC/40VDC |
||||||||||
|
Net weight |
12KG |
16KG |
26KG |
32KG |
38KG |
41KG |
||||||
|
Operating environment temperature |
0℃-40℃ |
|||||||||||
|
Storage ambient temperature |
-15℃ - +50℃ |
|||||||||||
|
Operating/storage environment |
0-90%No condensation |
|||||||||||
|
Dimensions: length * width * height |
410mm*300mm*145mm |
470mm*350mm*180mm |
||||||||||
|
Packing size: length * width * height |
490mm*380mm*220mm |
560mm*450mm*290mm |
||||||||||
| Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar power products,solar street light products,best off grid solar panel inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business. |
 |
 |
 |
 |
|
Q:Are you factory? A: Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan Q:What is the warranty for this best off grid solar powered inverter? A:YES,All products are at least 2 years warranty. Q:What is the shipping way? A:DHL,UPS,TNT,EMS,FedEx, Ship by sea. Q:What is the payment method? A:We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/Money Gram can also be used. Q:Can we design packaing? A:YES.We can customer's own packing Q:Can we customize product? A:YES.OEM&ODM. Q:Are there some optional function for your solar powered inverter? A:Yes,it have battery priority function, grid priority function, AC grid charger function, AVR function,RS232 interface telecommunication function. Solar panel with inverter mostly use battery priority function, AC grid charger function. It can make full use of solar power. Q:what is MARS best off grid solar powered inverter after sales service? A:during the warranty ,ship free PCB by DHL or FEDEX. |
