On And Off Grid Solar System
Solar System Manufacturer 5KW On Grid And Off Grid Solar System In Hindi
On Grid And Off Grid Solar System Can Work In Automatically Mode,Off Grid Mode,On Grid Mode,Time Setting Mode etc.- Products Name: 5KW On Grid And Off Grid Solar System
- Battery Type: Gel Battery Lithium Battery
- Output Voltage: 110V/120V/220V/230V/240V Single Phase
- Product Details
- Download
Solar System Manufacturer 5KW On Grid And Off Grid Solar System In Hindi

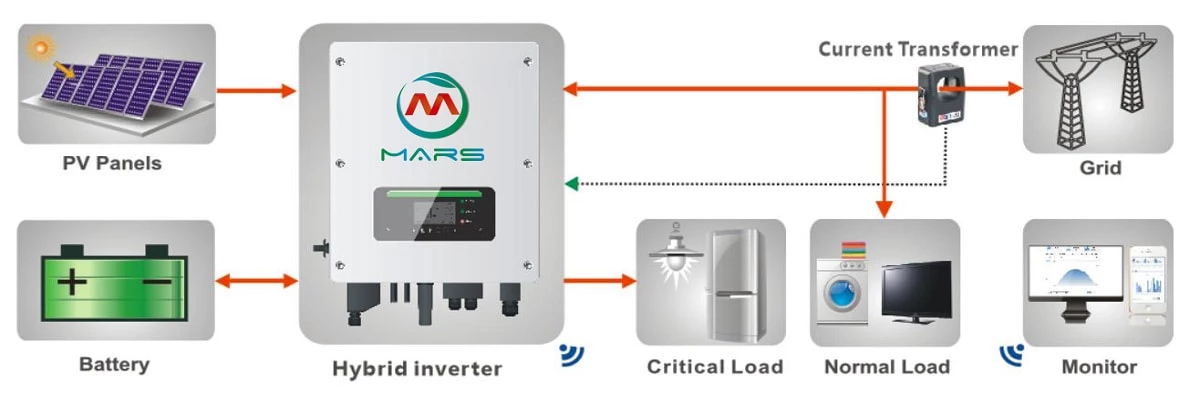

on grid and off grid solar power system working way:
1)on and off grid solar system supply solar power to loads directly,if solar power is excess, the power will charge to battery automatically.When the
battery power is full also, inverter will send the excess power to grid.
2)When the on and off grid solar system only generate few power,solar power supply to load,the insufficient part is replenished by the city power.
3)When the grid shut down,on and off grid solar system will switch to off grid status,transfer solar DC power to AC power, supply solar power directly to the load.When the solar panel can not provide enough power to
the load,it will use battery power,transfer battery power to the load.
|
5KW On Grid And Off Grid Solar System In Hindi |
|
|
Solar panel rated power:5.6KW Suitable for daily power consumption: >33.6KWH |
|
 |
16pcs 350W monocrystalline solar panel A Grade SUNTECH cells of high efficiency 18% Vmp:36V Voc:44V Imp:8.3A Size : 1640*992*40mm Operating temperature:-40℃~+80℃ 25 years life time, CE ROHS approval |
|
5KW On and off grid Inverter Rated Power :5KW Battery DC voltage:48V Max input vol:500VDC Output:110V/120V/127V/220V/230V/240V Single phase |
  |
  |
AGM Maintenance-Free Gel Battery 4pcs 12V150AH Service Life:6-8 Years，Size:483*240*239mm Germany Technology 2Years Warranty Lithium battery are optional |
|
Slope Rooftop or Flat ground design base on your installation place Including complete fittings wind load:55m/s,snow load:1.5kn/m2 Aluminum alloy, anti-oxidation treatment |
 |
 |
1)1set battery cable and terminal; 2)4mm2 PV cable 100M; 3)1set PV terminals and MC4; 4)2P 63A Battery switch； |
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for on grid and off grid solar system products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
| Q:Which areas are suitable to use this on grid and off grid solar system？ |
|
A:First of all,in your area,it should have good sunshine; Secondly,in your area,the government does not allow to send solar electricity to grid, but it will allow it in the future,then on grid and off grid solar system will be suitable.You use off grid solar system part function now,in the future,can connect with grid power,and send the additional solar power to grid. Thirdly,in your area,the government allow to send solar electricity to grid,but you want to have battery power in temporary,then on grid and off grid solar system will be suitable.You connect grid power,send part of solar electricity to grid,remaining solar power will store in battery. |
| Q:Why choose to use the MARS on grid and off grid solar system product? |
| A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS on and off grid solar system product can reduce your electricity bill by 90%.We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer. |
| Q:How long is the lead time of orders? |
| A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods. |
| Q:What is the warranty of products? |
| A:Suggest buy on grid and off grid solar system products from our factory, solar panel have 10 years warranty ,inverter have 5 years warranty,gel battery have 2years warranty,lithium battery have 3years warranty;During the warranty, will ship the free parts for service ,we promise our quality. |
| Q:Can I install it myself? |
| A:We provide installation drawing and user manual for you,guide the installation.If you have knowledge for electricity,you can do it by yourself.If you don't have electricity knowledge,you can ask your electrican to do the installation.If necessary,we can send our engineer come to country,and guide the installation. |
| Q:How to calculate the freight? |
| A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us. |
| Q:Can we get support if we have our own market position? |
| A:Please inform us your details market demand,we will discuss and propose helpful suggestion for you to find the best solution for you. |
