Off Grid Solar Power System
Solar System Manufacturer 3 Kilowatt Solar Panel Price South Africa
Demonstration solar system visiting in Africa / Asia / Europe / Middle East Comming soon~- Output voltage: 110V/220V/230V/240V
May you like
- Product Details
- Download
Solar System Manufacturer 3 Kilowatt Solar Panel Price South Africa
|
3 Kilowatt Solar Panel Price South Africa |
|
|
Solar panel rated power: 3.3KW Suitable for daily power consumption: >19.8KWH Allowable max loads power: 3KW/4.2KVA |
|
|
|
Half Cell Solar PanelSolar panels can be selected within 2 square meters
★1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5%
★2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell.
★4.4times EL test
★7.Packed in wooden boxes to ensure the safe delivery of the goods |
| 6T-48V Multiple PV strings inputs. Simplify wiring between PV array and controller. Protect controller from thunderstorm& surge protection, protect the solar electricity from flowing one panel to another panel. max open circuit voltage is 500V |
|
 |

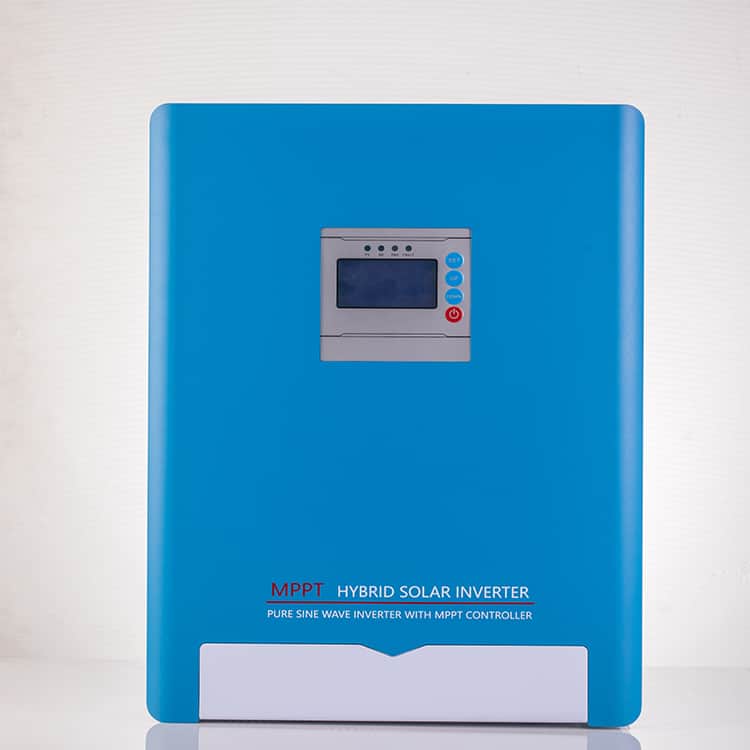

Inverter:3000W48VDC 110V/120V/220V/230V/240VACoutput thyroidal type transformer,conversion efficiency up to 90%,LCD display. City power charger and generator charger. build in 60A48V MPPT controller ,90%-95% charge efficiency.Overload, overcharge, over-discharge protection USA brand IR MOSFET material. |
|
Gel battery:4pcs 12V/200AH Deep cycle maintenance-free gel battery, Service life:6-8 years , Size:522*240*219mm

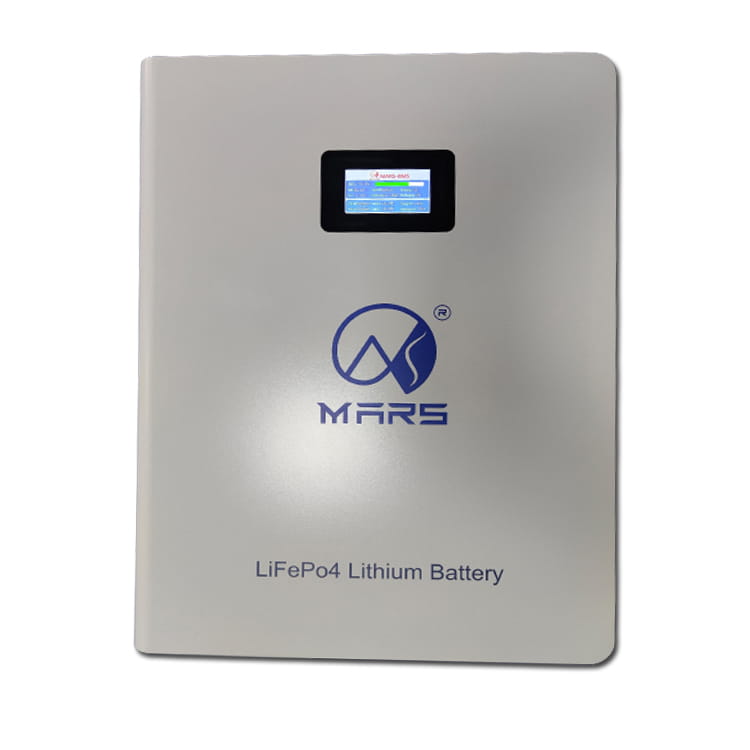

Lithium battery:10KWH lithium battery Service life:12-20years |
|
 |
Slope Rooftop or Flat ground design base on your installation place Including complete fittings wind load:55m/s,snow load:1.5kn/m2 Aluminum alloy, anti-oxidation treatment |
|
1)1set battery cable and terminal; 2)4mm2 PV cable 100M; 3)1set PV terminals and MC4; 4)2P 63A Battery switch. |
 |
|
3 Kilowatt Solar Panel Price South Africa Load Reference |
|||
| Load name | Load’s watt | Qty | Total watt |
| Lights | 11W | 8 | 88W |
| Fan | 80W | 2 | 160W |
| Computer | 100W | 2 | 200W |
| Washing machine | 250W | 1 | 250W |
| Electric cooker | 300W | 1 | 300W |
| Satellite TV receiver/VCD | 25W | 1 | 25W |
| Color TV | 100W | 1 | 100W |
| Water pump | 200W | 1 | 200W |
| Refrigerator | 100W | 1 | 100W |
| Air conditioner(1.5HP) | 1125W | 1 | 1125W |
| Total | 2548W | ||
Remark:water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first.
3KW solar system with lithium battery 3KW solar system with gel battery
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar panel system products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
| Q:Which solar panel system product is suitable for me? |
| A:Mars solar panel system product can be used in homes, offices, villas, hospitals, churches, etc.Mars manufacture solar panel system product from 300W to 250KW, you can choose according to your own needs.if you do not know which model system is suitable for you, you can consult us.Our 10years experience sale manager will help you configure the system in 12hrs. |
| Q:Why choose to use the MARS solar panel system product? |
| A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar panel system product can reduce your electricity bill by 90%.We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer. |
| Q:How long is the lead time of orders? |
| A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods. |
| Q:What is the warranty of products? |
| A:Suggest buy solar panel system product from our factory, solar panel have 10 years warranty ,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality. |
| Q:Can I install it myself? |
| A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation. |
| Q:How to calculate the freight? |
| A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us. |
| Q:Can we get support if we have our own market position? |
| A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you. |
