Solar System Manufacturer 5KW Solar Power System South Africa
5KW Solar System Cost
5KW Solar System Cost
5KW Solar System Cost
5KW Solar System Cost

Solar System Manufacturer 5KW Solar Power System South Africa

Demonstration solar system visiting in Africa / Asia / Europe / Middle East Comming soon~

Product Specification:
  • Output voltage: 110V/220V/230V/240V
Inquiry Now
  1. Product Details
  2. Download

Solar System Manufacturer 5KW Solar Power System South AfricaSolar System Manufacturer 5KW Solar Power System South Africa Solar System Manufacturer 5KW Solar Power System South Africa

5KW Solar Power System South Africa

Solar panel rated power:5.6KW Suitable for daily power consumption: >33.6KWH

Allowable max loads power:5KW/7KVA

5KW Solar System Cost

Half Cell Solar Panel

Solar panels can be selected within 2 square meters



★1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5%



★2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell.


★3.Quality control:Cell efficiency /cell power sorting



★4.4times EL test


★5.The automatic confluence welding processof cells is adopted to ensure no false welding




★6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years



★7.Packed in wooden boxes to ensure the safe delivery of the goods

4T-96V Multiple PV strings inputs. Simplify wiring between PV array and controller. Protect controller from thunderstorm& surge protection, protect the solar electricity from flowing one panel to another panel. max open circuit voltage is 500V

5KW Solar Power System

5KW Solar Power System

Solar Inverter

★1KW~100KW pure sine wave inverter with MPPT solar charge controller,

★Optional charge by generator.90%-95% charge efficiency, Protection against anti-charge at night,battery over charge, over
discharge protection, Joint-reversed of solar modules, LCD display, grid bypass, With AC charger built in, short-circuit, over
load, and low-voltage protection

★we use famous Japand band Mitsubishi and Fuji IGBT.We are the first factory who use IGBT technology in single phase inverter.
★Output:110V,120V,220V,230V,240V,380V,400V.415V copper transformer

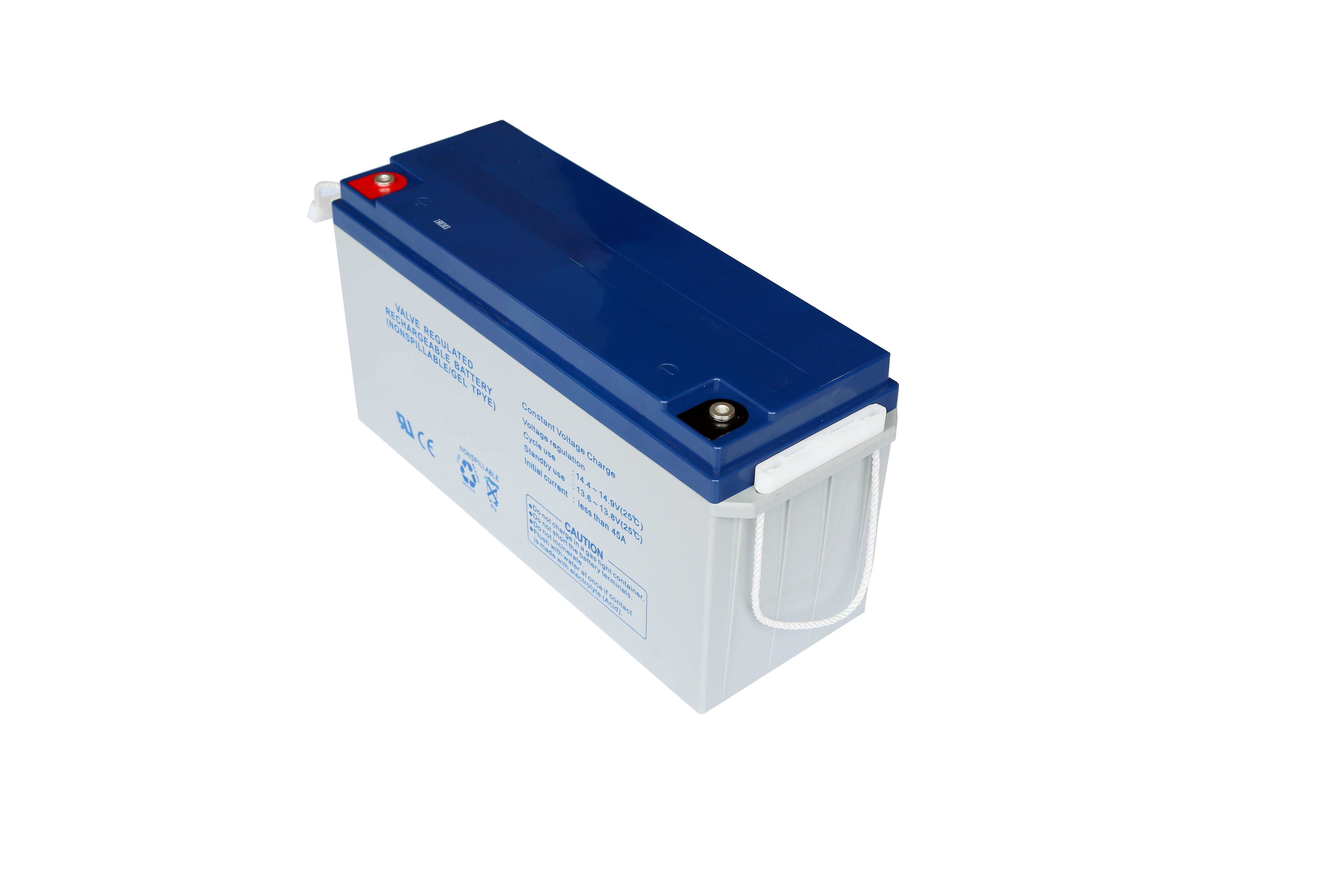

lithium battery and gel battery?

★A:Lithium battery have longer use life, is 20years max.

★Powerwall lithium battery saves installation of controls.

★Gel battery have shorter use life (5-6years),the price will be lower.

★If your budget allow,you can chose lithium battery.If your budget are not allow,you can use gel battery now,in the future,you collect more money then can use lithium battery.



5KW Solar Power System5KW Solar Power System

Solar System Manufacturer 5KW Solar Power System South Africa

Slope Rooftop or Flat ground

design base on your installation place

Including complete fittings

wind load:55m/s,snow load:1.5kn/m2

Aluminum alloy, anti-oxidation treatment

1)1set battery cable and terminal;

2)4mm2 PV cable 100M;

3)1set PV terminals and MC4;

4)2P 63A Battery switch.

Solar System Manufacturer 5KW Solar Power System South Africa


 5KW Solar Power System South Africa Load Reference

Load name Load’s watt Qty Total watt
Lights 11W 8 88W
Fan 80W 2 160W
Computer 150W 2 300W
Printer 250W 1 250W
Fax machine 150W 1 150W
Washing machine 300W 1 300W
Microwave 1000W 1 1000W
Electric cooker 300W 1 300W
Satellite TV receiver/VCD 25W 1 25W
Color TV 100W 2 200W
Water pump 200W 1 200W
Refrigerator 120W 1 120W
Air conditioner(2HP) 1500W 1 1500W
Total 4593W

Remark:water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first.

Solar System Manufacturer 5KW Solar Power System South Africa

5KW Solar Power System5KW Solar Power System

 Solar System Manufacturer 5KW Solar System Price South AfricaSolar System Manufacturer 5KW Solar System Price South Africa

    Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for home solar power system products,commercial solar system products ,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.

Solar System Manufacturer 5KW Solar System Price South Africa Solar System Manufacturer 5KW Solar System Price South Africa Solar System Manufacturer 5KW Solar System Price South AfricaSolar System Manufacturer 5KW Solar System Cost South Africa Solar System Manufacturer 5KW Solar System Cost South Africa Solar System Manufacturer 5KW Solar System Cost South AfricaSolar System Manufacturer 5KW Solar System Cost South Africa

Q:Which solar power system products is suitable for me?
A:Mars solar power system products can be used in homes, offices, villas, hospitals, churches, etc.Mars manufacture solar power system products, you can choose according to your own needs.if you do not know which model system is suitable for you, you can consult us.Our 10years experience sale manager will help you configure the system in 12hrs.

Q:Why choose to use the MARS solar power system product?
A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar power system product can reduce your electricity bill by 90%.We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods.

Q:What is the warranty of products?
A:Suggest buy solar power system products from our factory, solar panel have 10 years warranty ,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

Q:Can we get support if we have our own market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you.
