Off Grid Solar Power System
Solar System Manufacturer 3KW Upgrading Solar Power System
3KW Upgrading Solar Power System Use Less Battery Can Enjoy Free Sun Power.- Output voltage: 110V/220V/230V/240V
- Inverter Type: Off Grid Solar Inverter
- Additional Function: Optional To Work With Battery And Without Battery
- Product Details
- Download
Solar System Manufacturer 3KW Upgrading Solar Power System
|
3KW Upgrading Solar Power System |
|
|
Solar panel rated power:3200W Suitable for daily power consumption: >20KWH Allowable max loads power:3KW |
|
 |
10pcs 320W monocrystalline solar panel A Grade SUNTECH cells of high efficiency 18% Vmp:36V Voc:44V Imp:9A Size : 1956*992*40mm Operating temperature:-40℃~+80℃ 25 years life time, CE ROHS approval |
|
Power capacity:3KW MPPT voltage:120V-500V Rate voltage:120V-450V Allowed Vol Range Of Grid：220V LCD display,grid bypass With AC charger built in Optional to connect battery or disconnect battery |
  |
 |
Slope Rooftop or Flat ground design base on your installation place Including complete fittings wind load:55m/s,snow load:1.5kn/m2 Aluminum alloy, anti-oxidation treatment |
|
1)4mm2 PV cable 100M 2)1set PV terminals and MC4 |
 |
 |
4pcs 12V/150AH Deep cycle maintenance-free gel battery, Service life:6-8 years , Size:483*170*219mm You can chose to use battery,also can chose not use battery. |

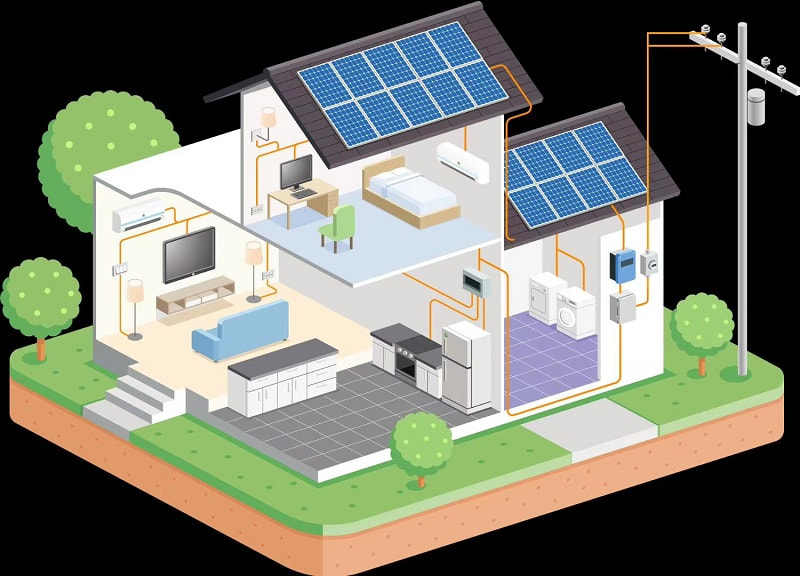

How it work?
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for standard home solar system products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
| Q:Which standard home solar system products is suitable for me? |
| A:Mars standard home solar system products can be used in homes, offices, villas, hospitals, churches, etc.Mars manufacture standard home solar system products, you can choose according to your own needs.if you do not know which model system is suitable for you, you can consult us.Our 10years experience sale manager will help you configure the system in 12hrs. |
| Q:Why choose to use the MARS standard home solar system product? |
| A:Solar energy is now the most environmentally friendly energy source in the world. Using the MARS standard home solar system product can reduce your electricity bill by 90%.We have 10+years experience in solar products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer. |
| Q:How long is the lead time of orders? |
| A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods. |
| Q:What is the warranty of products? |
| A:Suggest buy standard home solar system products from our factory, solar panel have 10 years warranty ,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality. |
| Q:Can I install it myself? |
| A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation. |
| Q:How to calculate the freight? |
| A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us. |
| Q:Can we get support if we have our own market position? |
| A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you. |
