Solar Water Pump System
Solar System Manufacturer 3HP Solar System For Farms
Solar System For Farms for 2.2KW 3HP submersible water pump, 50HZ,220V single phase- Product name: 3HP Solar System For Farms
- Solar panel power: 3500W
- Water pump inverter: 4KW
- Allow to connect water pump power: 2.2KW
- Voltage: 220V50HZ single phase
- Product Details
- Download
Solar System Manufacturer 3HP Solar System For Farms
This solar system for farms supply power to 2.2KW 3HP 220V50HZ single phase water pump,it is not include the water pump,water pump will design base on your requirement.
 |
10pcs 350W poly solar panel Vmp:38.7V Voc:47.2V Imp :9.59A Size : 1956*992*40mm 25 years life time (CE TUV) Coated steel Glass:3.2mm Tem pered Terminal block：IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% |
 |

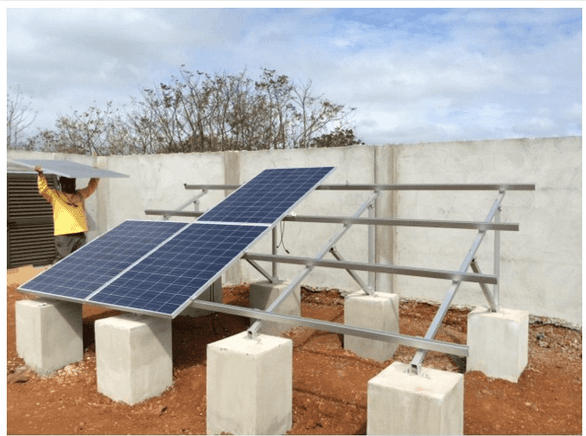

1set Slope Roof or Flat roof or Ground (option) including complete fittings wind load:55m/s,snow load:1.5kn/m2 structure: Anodized Aluminum +stainless steel, Angle adjustable (other type of rack can be customized as per client's requirement ) |
 |

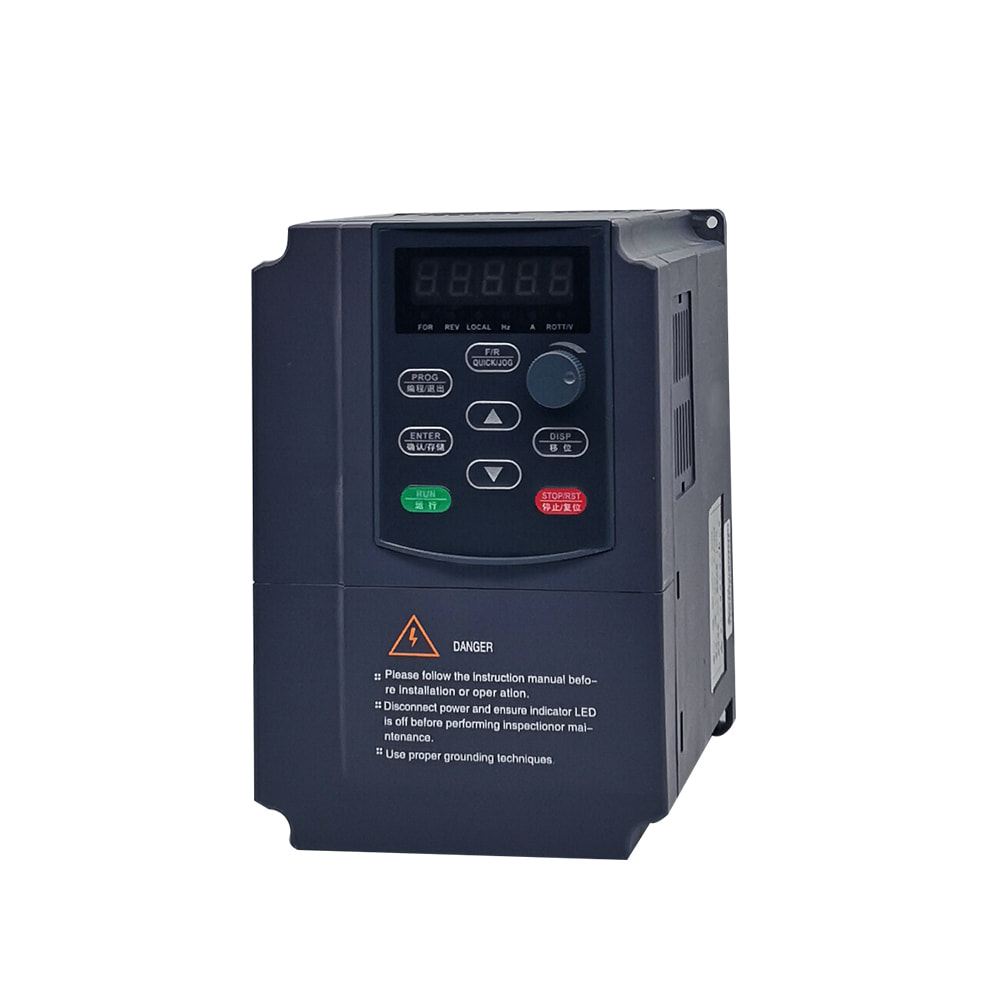

4KW solar water pump inverter Solar input votage:310V MPPT controller: 450V-700V MPPT effeiceny: 99.99% Thunder protection,water full protection Output:220V single phase |
 |

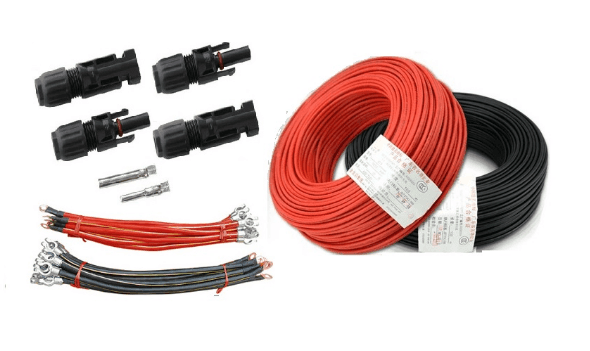

1)From solar panel to inverter: 4mm2 PV cable:100M |
If i want to buy complete set solar system for farm,how can i know which solar system for farm is suitable for me?
Pls provide these information to us then we can provide the professional guide to you:
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
Daily Water Supply： ______m3
Static haed(vertical height from the pump to the highest point of delivery):________ m
Motor Cable length( the cable between controller and pump) :__________m
Pipeline length(Entire pipeline from the pump outlet to the point of delivery) :____________m
Slope or horizonal between borehole and tank _____________
Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar power system,solar system for farms products,solar street light products,inverter products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.
We are a manufacturer that specialized in 3HP solar system for farms 12 years. our products have abtained the CE certificate.
we accept the sample order, but need to be paid.
1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation
